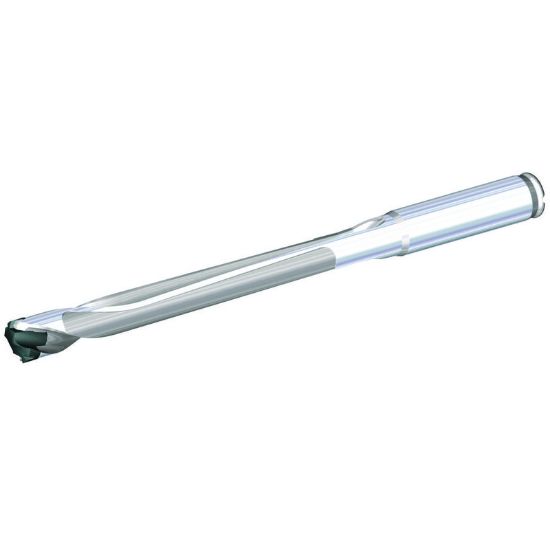

Picture of WIDIA/KENNAMETAL TDM0827R8SS088 TDM1 Drill BODY INCH SS 8XD D=

WIDIA/KENNAMETAL TDM0827R8SS088 TDM1 Drill BODY INCH SS 8XD D=

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3992558
Delivery date: 3-5 days
$560.96

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling, Single Insert Drilling
Shipping State Pennsylvania
Package Size 1
Grade WG
Dimensional Specifications
Cutter Dia 0.8268 21.00MM
Overall Len 10.2520 260.40MM
Cut Dia Min 0.8268 21.00MM
Cut Dia Max 0.8657 21.99MM
Flutes/Inserts 2
Dia Deep 8.0XD
Tool Material Steel
Flute Length 6.9290 176.00MM
Machine Side Connection Size 0.8750 22.23MM
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
