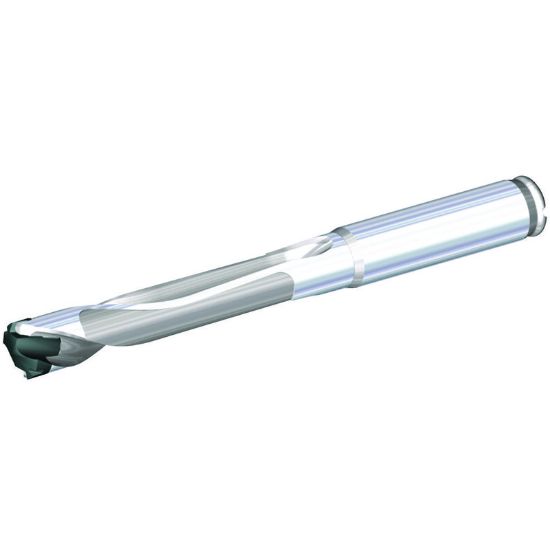

Picture of WIDIA/KENNAMETAL TDM0709R5SS075 TDM1 Drill BODY 5XD D=0.7087

WIDIA/KENNAMETAL TDM0709R5SS075 TDM1 Drill BODY 5XD D=0.7087

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3851577
Delivery date: 3-5 days
$361.77

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling
Made In USA No
Grade WG
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 0.7476 18.99MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cutter Dia 0.7087 18.00MM
Flute Length 3.7400 95.00MM
Machine Side Connection Size 0.7500 19.05MM
Dia Deep 5.0XD
Tool Material Steel
Overall Len 6.8750 174.63MM
Cut Dia Min 0.7087 18.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
