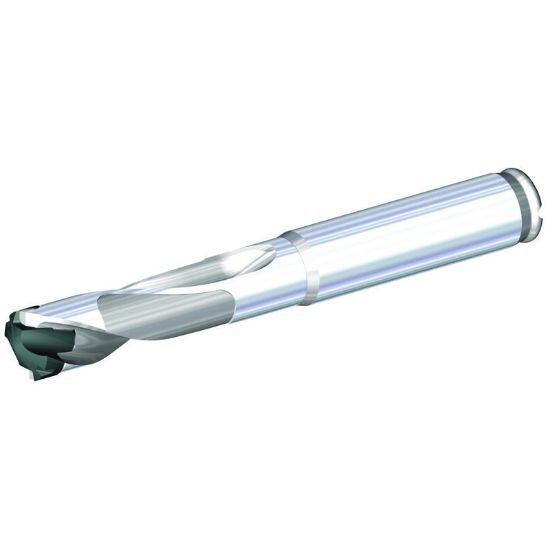

Picture of WIDIA/KENNAMETAL TDM0709R3SS075 TDM1 Drill BODY 3XD D=0.7087

WIDIA/KENNAMETAL TDM0709R3SS075 TDM1 Drill BODY 3XD D=0.7087

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3851576
Delivery date: 3-5 days
$314.56

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Grade WG
Shipping State Pennsylvania
Application Single Insert Drilling, Drilling
Made In USA No
Dimensional Specifications
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Overall Len 5.2500 133.35MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Dia Deep 3.0XD
Flute Length 2.2400 56.90MM
Cutter Dia 0.7087 18.00MM
Cut Dia Min 0.7087 18.00MM
Cut Dia Max 0.7476 18.99MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
