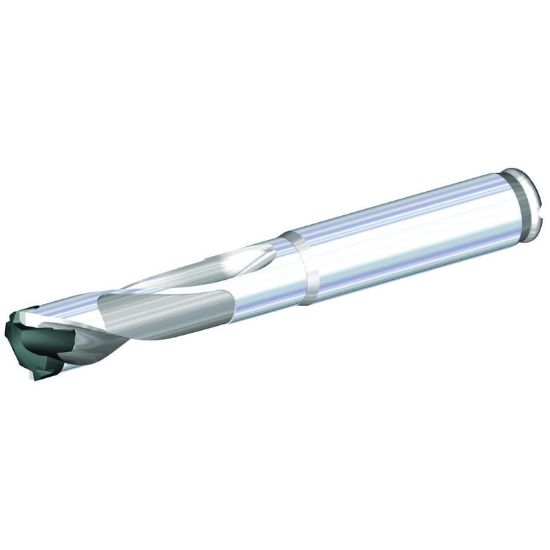

Picture of WIDIA/KENNAMETAL TDM0591R3SS063 TDM1 Drill BODY 3XD D=0.5906

WIDIA/KENNAMETAL TDM0591R3SS063 TDM1 Drill BODY 3XD D=0.5906

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3851570
Delivery date: 3-5 days
$263.00

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Application Single Insert Drilling, Drilling
Grade WG
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 0.6295 15.99MM
Machine Side Connection Size 0.6250 15.88MM
Overall Len 4.7500 120.65MM
Cutter Dia 0.5906 15.00MM
Cut Dia Min 0.5906 15.00MM
Flutes/Inserts 2
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Material Steel
Flute Length 1.8900 48.01MM
Dia Deep 3.0XD
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
