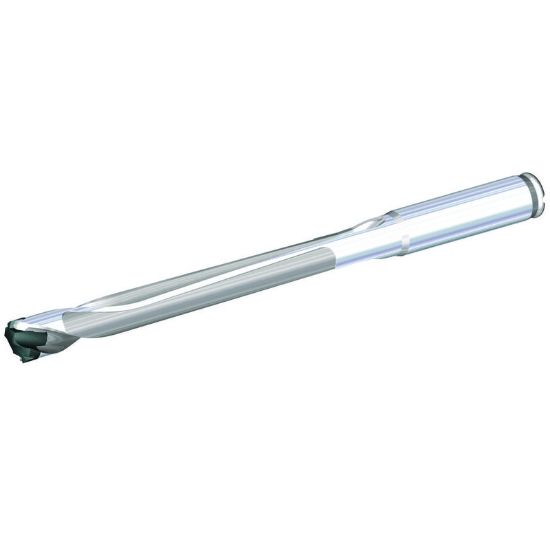

Picture of WIDIA/KENNAMETAL TDM0551R8SS056 TDM1 Drill BODY INCH SS 8XD D=

WIDIA/KENNAMETAL TDM0551R8SS056 TDM1 Drill BODY INCH SS 8XD D=

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3992550
Delivery date: 3-5 days
$321.95

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling
Made In USA No
Grade WG
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Max 0.5705 14.49MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.5625 14.29MM
Flute Length 4.5670 116.00MM
Cut Dia Min 0.5512 14.00MM
Flutes/Inserts 2
Overall Len 7.3740 187.30MM
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Dia Deep 8.0XD
Cutter Dia 0.5512 14.00MM
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
