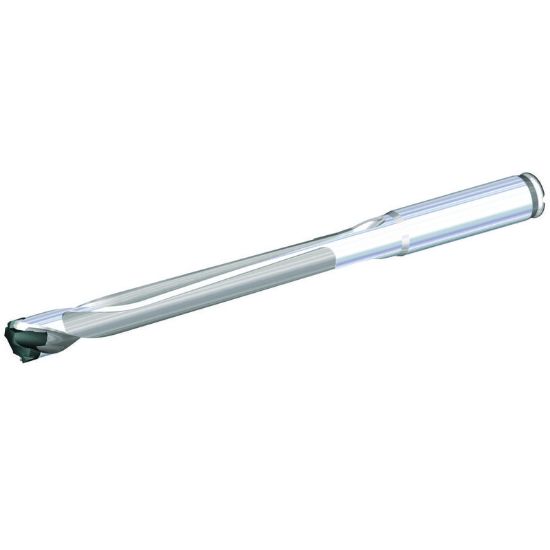

Picture of WIDIA/KENNAMETAL TDM0532R8SS056 TDM1 Drill BODY INCH SS 8XD D=

WIDIA/KENNAMETAL TDM0532R8SS056 TDM1 Drill BODY INCH SS 8XD D=

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3992549
Delivery date: 3-5 days
$321.95

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Single Insert Drilling, Drilling
Grade WG
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 0.5315 13.50MM
Cut Dia Min 0.5315 13.50MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.5625 14.29MM
Flute Length 4.4090 111.99MM
Overall Len 7.2520 184.20MM
Cut Dia Max 0.5508 13.99MM
Tool Material Steel
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Dia Deep 8.0XD
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
