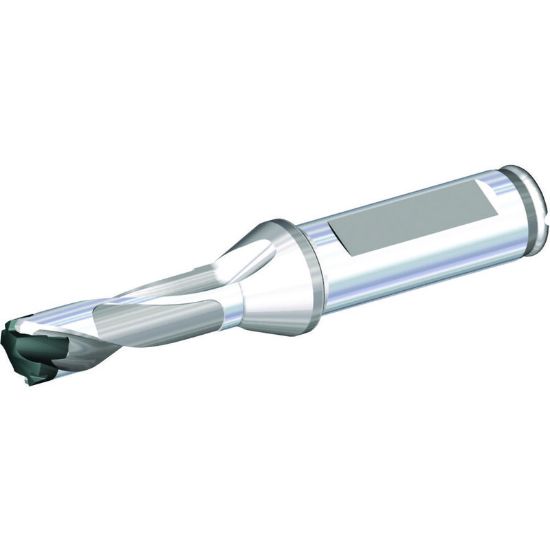

Picture of WIDIA/KENNAMETAL TDM0512R3SCF063 TDM1 Drill BODY INCH SCF 3XD D

WIDIA/KENNAMETAL TDM0512R3SCF063 TDM1 Drill BODY INCH SCF 3XD D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4099017
Delivery date: 3-5 days
$265.23

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Grade W
Made In USA No
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Material Steel
Cut Dia Min 0.5118 13.00MM
Machine Side Connection Size 0.6250 15.88MM
Overall Len 2.5000 63.50MM
Flute Length 1.5940 40.49MM
Cut Dia Max 0.5311 13.49MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Cutter Dia 0.5118 13.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
