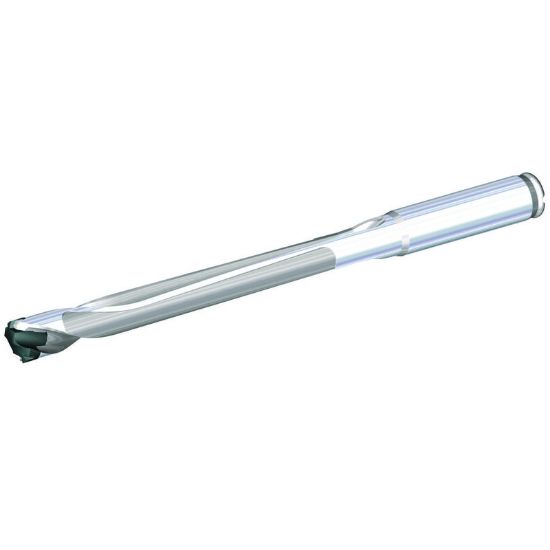

Picture of WIDIA/KENNAMETAL TDM0492R8SS050 TDM1 Drill BODY INCH SS 8XD D=

WIDIA/KENNAMETAL TDM0492R8SS050 TDM1 Drill BODY INCH SS 8XD D=

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3992546
Delivery date: 3-5 days
$321.95

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Package Size 1
Grade WG
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Cut Dia Min 0.4921 12.50MM
Cutter Dia 0.4921 12.50MM
Cut Dia Max 0.5114 12.99MM
Machine Side Connection Size 0.5000 12.70MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 7.0000 177.80MM
Flutes/Inserts 2
Flute Length 4.0950 104.01MM
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Dia Deep 8.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
