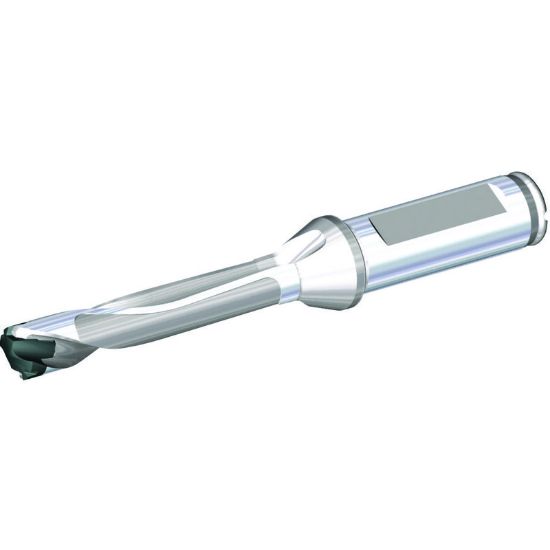

WIDIA/KENNAMETAL TDM0472R5SCF063 TDM1 Drill BODY INCH SCF 5XD D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4099040
Delivery date: 3-5 days
$275.44

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Grade W
Made In USA No
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Max 0.4920 12.50MM
Flutes/Inserts 2
Flute Length 2.4600 62.48MM
Tool Material Steel
Cutter Dia 0.4724 12.00MM
Cut Dia Min 0.4724 12.00MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Overall Len 5.2600 133.60MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
