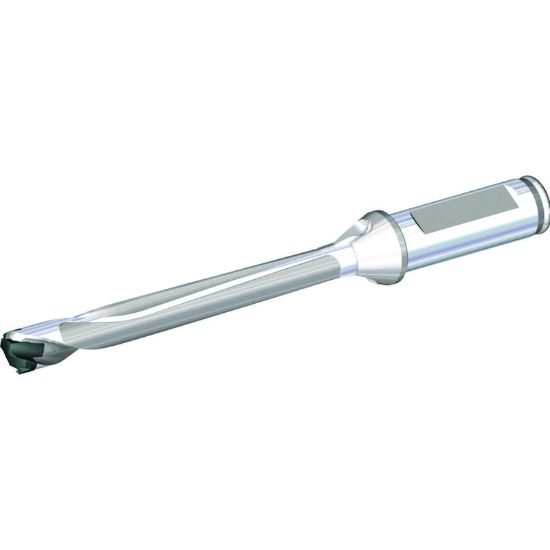

Picture of WIDIA/KENNAMETAL TDM0453R8SCF063 TDM1 Drill BODY INCH SCF 8XD D

WIDIA/KENNAMETAL TDM0453R8SCF063 TDM1 Drill BODY INCH SCF 8XD D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4099064
Delivery date: 3-5 days
$319.48

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Grade W
Made In USA No
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Dia Deep 8.0XD
Cut Dia Max 0.4720 11.99MM
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flute Length 4.6250 117.48MM
Cut Dia Min 0.4528 11.50MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 6.5148 165.48MM
Cutter Dia 0.4528 11.50MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
