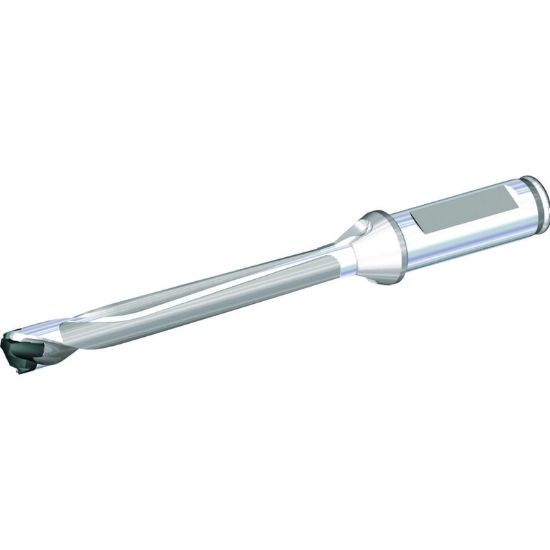

Picture of WIDIA/KENNAMETAL TDM0413R8SCF063 TDM1 Drill BODY INCH SCF 8XD D

WIDIA/KENNAMETAL TDM0413R8SCF063 TDM1 Drill BODY INCH SCF 8XD D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4099062
Delivery date: 3-5 days
$319.48

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling
Grade W
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Max 0.4327 10.99MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Min 0.4133 10.50MM - Z
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 4.2500 107.95MM
Flutes/Inserts 2
Dia Deep 8.0XD
Flute Length 3.4640 87.99MM
Tool Material Steel
Cutter Dia 0.4133 10.50MM - Z
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
