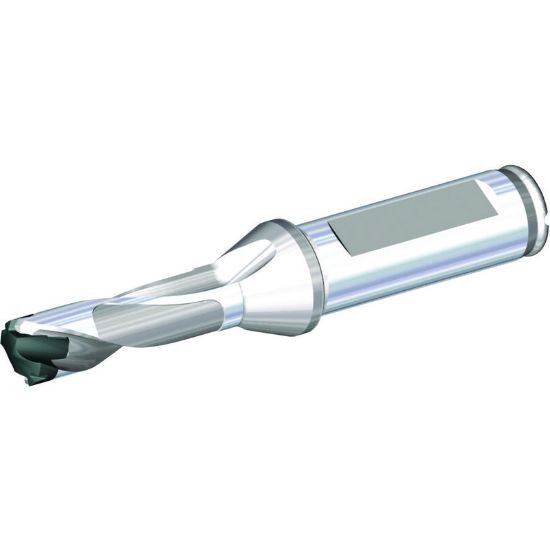

Picture of WIDIA/KENNAMETAL TDM0335R3SCF050 TDM1 Drill BODY INCH SCF 3XD D

WIDIA/KENNAMETAL TDM0335R3SCF050 TDM1 Drill BODY INCH SCF 3XD D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4098938
Delivery date: 3-5 days
$217.25

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Grade W
Made In USA No
Package Size 1
Application Drilling, Single Insert Drilling
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Max 0.3539 8.99MM
Dia Deep 3.0XD
Machine Side Connection Size 0.5000 12.70MM
Cut Dia Min 0.3346 8.50MM
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Dia 0.3346 8.50MM
Flute Length 1.0630 27.00MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 1.7500 44.45MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
