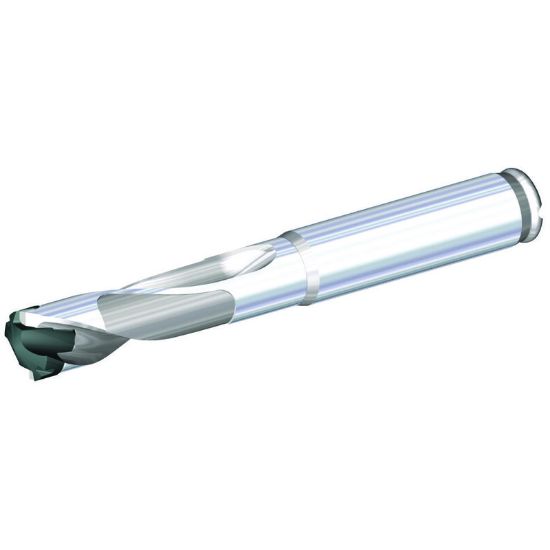

Picture of WIDIA/KENNAMETAL TDM0313R3SS038 TDM1 Drill BODY 3XD D=0.3150

WIDIA/KENNAMETAL TDM0313R3SS038 TDM1 Drill BODY 3XD D=0.3150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3851478
Delivery date: 3-5 days
$197.45

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling
Grade WG
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Dia Deep 3.0XD
Cutter Dia 0.3125 7.94MM - 5/16
Cut Dia Min 0.3125 7.94MM - 5/16
Cut Dia Max 0.3343 8.49MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 3.1250 79.38MM
Flute Length 1.0000 25.40MM
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
