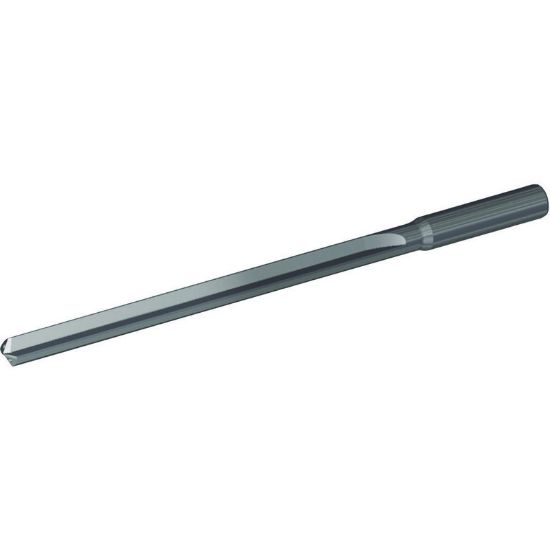

WIDIA/KENNAMETAL TDG534A16000 SC Drill 16MM/.6299/ 12XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4157647
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Drilling Thru Coolant
Made In USA No
Grade WN10HD
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 130°
Cut Dia Min 0.6299 16.00MM
Overall Len 10.9055 277.00MM
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Cutter Dia 0.6299 16.00MM
Flute Length 7.5590 192.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
