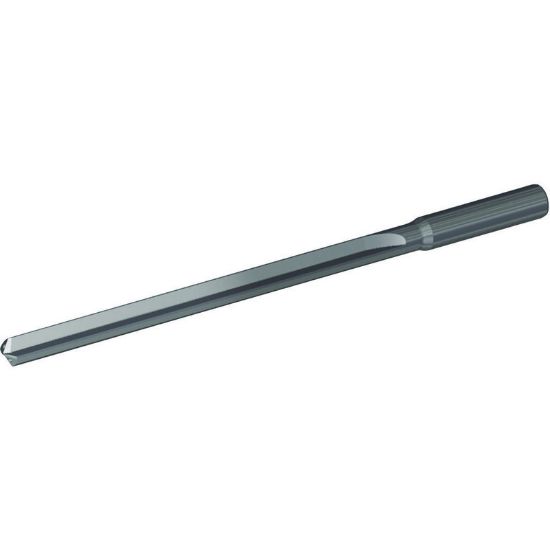

WIDIA/KENNAMETAL TDG534A12000 SC Drill 12MM/.4724/ 12XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4157599
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling Thru Coolant, Drilling
Grade WN10HD
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Flute Length 5.6690 143.99MM
Cutter Dia 0.4724 12.00MM
Cut Dia Min 0.4724 12.00MM
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 8.5827 218.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 130°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
