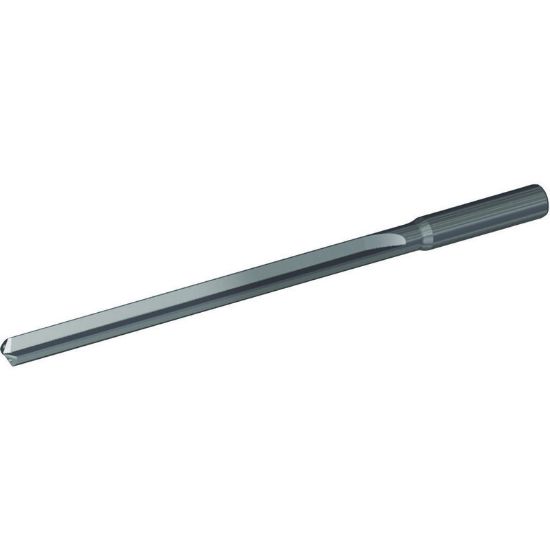

WIDIA/KENNAMETAL TDG534A08000 SC Drill 8MM/.3150/ 12XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4157435
Delivery date: 3-5 days
$204.79

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Thru Coolant, Drilling
Grade WN10HD
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Included Angle 130°
Cut Dia Min 0.3150 8.00MM
Flute Length 3.7800 96.01MM
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Overall Len 6.0236 153.00MM
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
