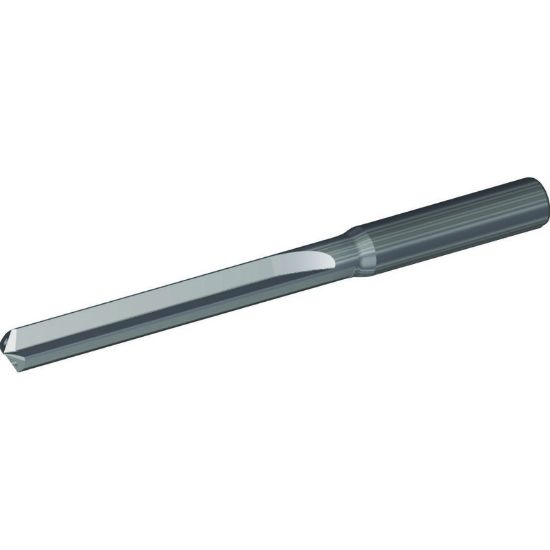

WIDIA/KENNAMETAL TDG533A16000 SC Drill 16MM/.6299/ 8XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4158683
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Drilling Thru Coolant
Made In USA No
Grade WN10HD
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cut Dia Min 0.6299 16.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 6.7323 171.00MM
Flute Length 3.9760 100.99MM
Included Angle 130°
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
