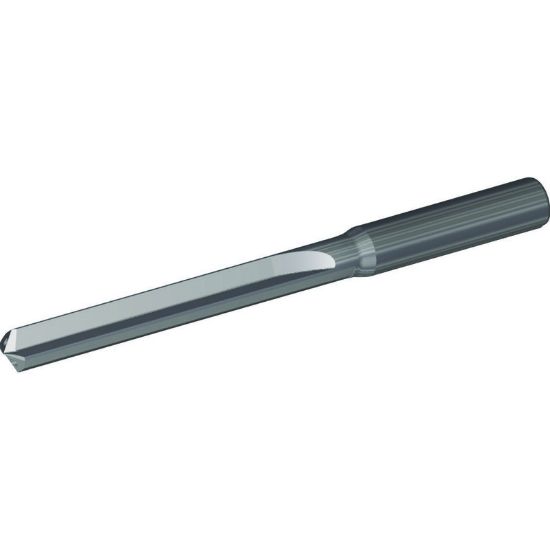

WIDIA/KENNAMETAL TDG533A14000 SC Drill 14MM/.5512/ 8XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4158628
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Pennsylvania
Application Drilling Thru Coolant, Drilling
Grade WN10HD
Made In USA No
Dimensional Specifications
Cut Dia Min 0.5512 14.00MM
Flutes/Inserts 2
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Cutter Dia 0.5512 14.00MM
Shank/Pilot Dia 0.5512 14.00MM
Machine Side Connection Type Cylindrical
Included Angle 130°
Tool Material Carbide
Machine Side Connection Size 0.5512 14.00MM
Overall Len 6.1024 155.00MM
Flute Length 3.5830 91.01MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
