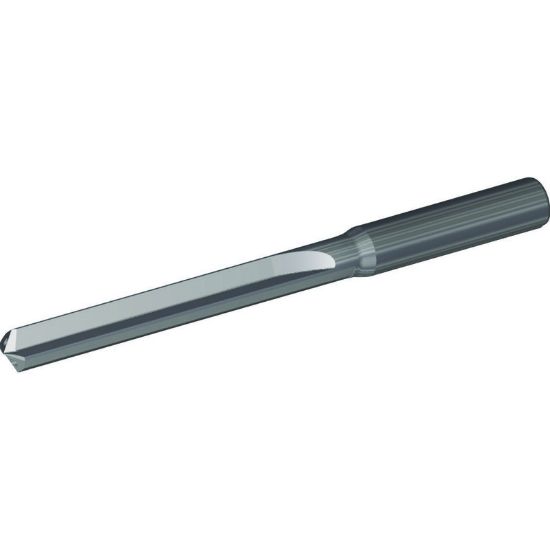

WIDIA/KENNAMETAL TDG533A08400 SC Drill 8,4MM/.3307/ 8XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4158735
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Thru Coolant, Drilling
Grade WN10HD
Package Size 1
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Included Angle 130°
Flute Length 2.6770 68.00MM
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Cutter Dia 0.3307 8.40MM
Cut Dia Min 0.3307 8.40MM
Machine Side Connection Size 0.3937 10.00MM
Overall Len 4.8031 122.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
