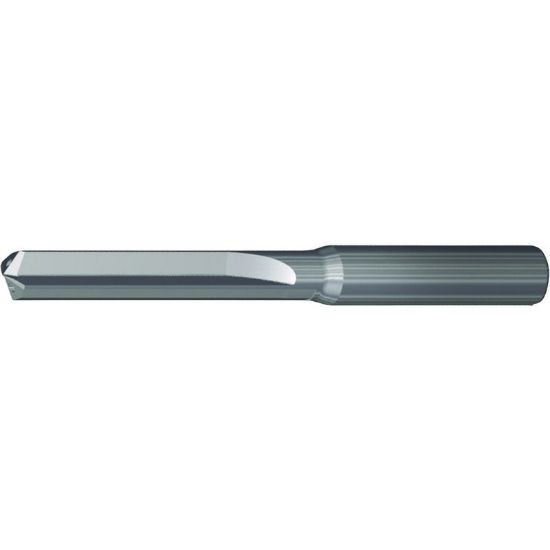

WIDIA/KENNAMETAL TDG532A20000 SC Drill 20MM/.7874/ 5XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4158622
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Package Size 1
Application Drilling Thru Coolant, Drilling
Grade WN10HD
Made In USA No
Dimensional Specifications
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Cut Dia Min 0.7874 20.00MM
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 6.0236 153.00MM
Flute Length 3.0320 77.01MM
Included Angle 130°
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
