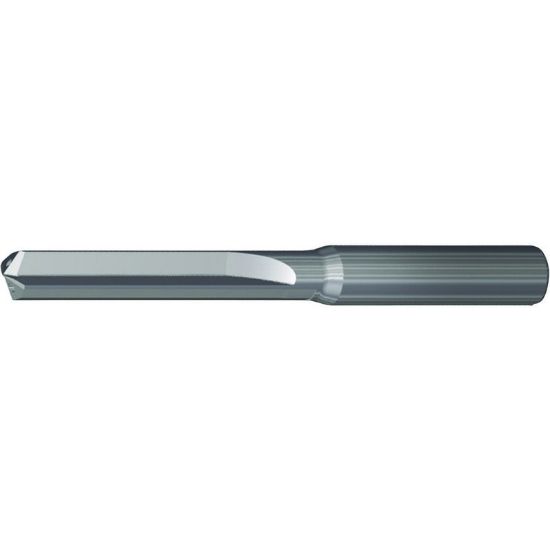

WIDIA/KENNAMETAL TDG532A12700 SC Drill 12,7MM/.5000/ 5XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4158384
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Package Size 1
Application Drilling, Drilling Thru Coolant
Made In USA No
Grade WN10HD
Dimensional Specifications
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5512 14.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Included Angle 130°
Flutes/Inserts 2
Flute Length 2.3620 59.99MM
Shank/Pilot Dia 0.5512 14.00MM
Cut Dia Min 0.5000 12.70MM - 1/2
Overall Len 4.8819 124.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
