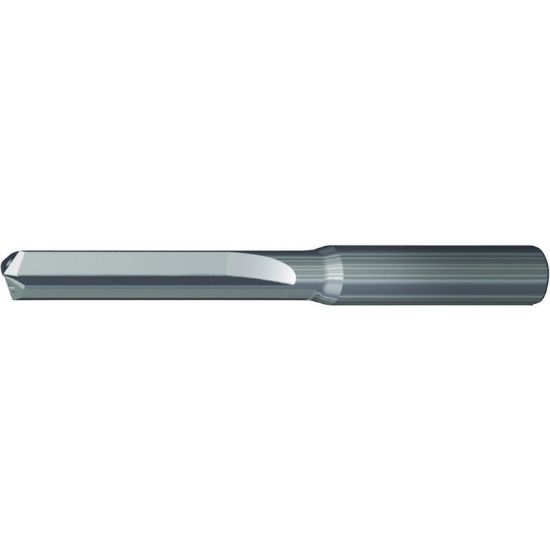

WIDIA/KENNAMETAL TDG532A12000 SC Drill 12MM/.4724/ 5XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4158376
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Application Drilling, Drilling Thru Coolant
Made In USA No
Package Size 1
Grade WN10HD
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Shank/Pilot Dia 0.4724 12.00MM
Included Angle 130°
Machine Side Connection Size 0.4724 12.00MM
Overall Len 4.6457 118.00MM
Flutes/Inserts 2
Flute Length 2.2050 56.01MM
Cutter Dia 0.4724 12.00MM
Cut Dia Min 0.4724 12.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
