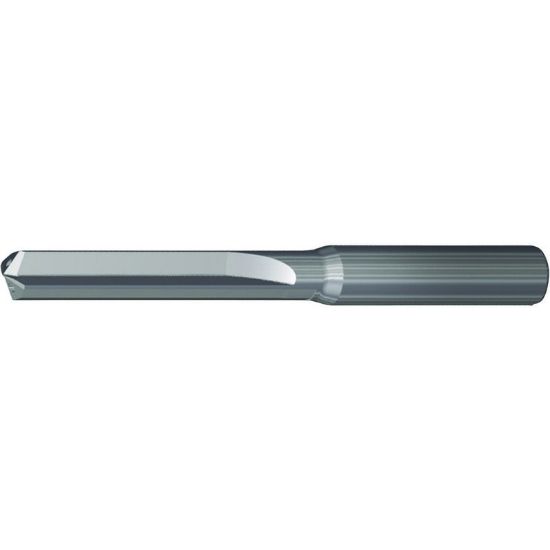

WIDIA/KENNAMETAL TDG532A10716 SC Drill 10,716MM/.4219/ 5XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4158360
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling Thru Coolant, Drilling
Grade WN10HD
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Cutter Dia 0.4219 10.72MM - 27/64
Cut Dia Min 0.4219 10.72MM - 27/64
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Included Angle 130°
Overall Len 4.6457 118.00MM
Flute Length 2.2050 56.01MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
