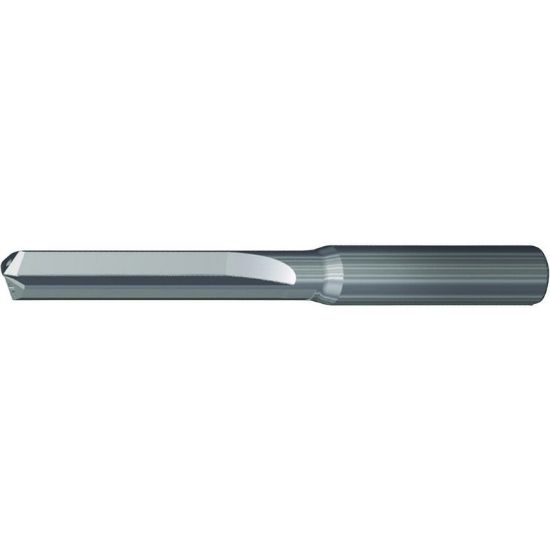

WIDIA/KENNAMETAL TDG532A06000 SC Drill 6MM/.2362/ 5XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4158021
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Drilling Thru Coolant
Made In USA No
Shipping State Pennsylvania
Package Size 1
Grade WN10HD
Dimensional Specifications
Cutter Dia 0.2362 6.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Included Angle 130°
Tool Material Carbide
Flute Length 1.3780 35.00MM
Cut Rating Aluminum, Ductile Iron, Gray Iron, Graphite
Machine Side Connection Size 0.2362 6.00MM
Cut Dia Min 0.2362 6.00MM
Flutes/Inserts 2
Overall Len 3.2283 82.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
