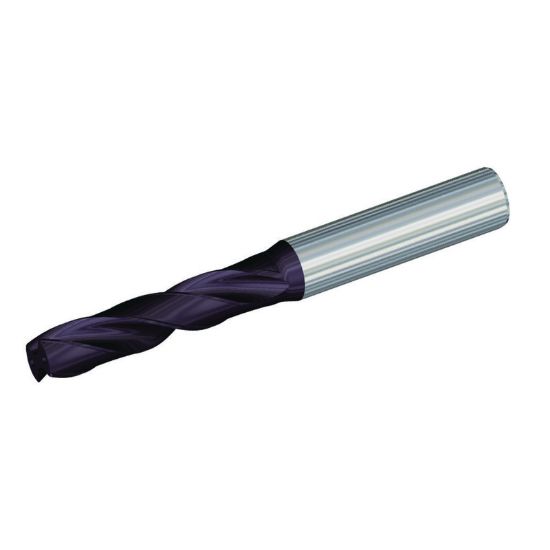

WIDIA/KENNAMETAL TDF521A18000 SC Drill 18MM/.7087/ 3XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6197129
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Grade WN15HD
Package Size 1
Application Drilling Thru Coolant, Drilling
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Dia Deep 3.0XD
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.7087 18.00MM
Included Angle 180° , Flat Bot
Cut Dia Min 0.7087 18.00MM
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 2
Machine Side Connection Size 0.7087 18.00MM
Flute Length 2.0080 51.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 4.8425 123.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
