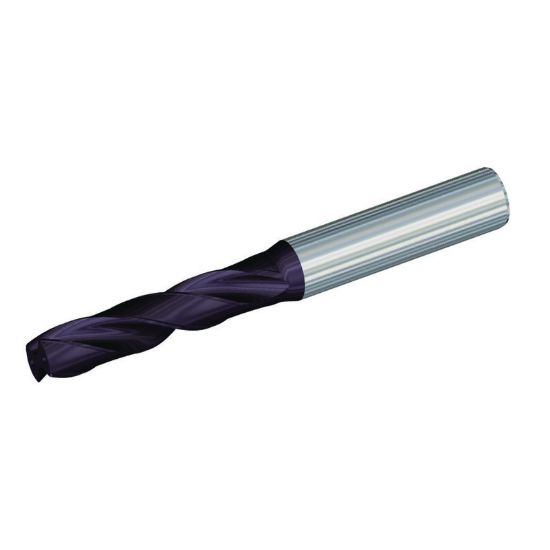

WIDIA/KENNAMETAL TDF521A14000 SC Drill 14MM/.5512/ 3XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6197127
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Pennsylvania
Application Drilling Thru Coolant, Drilling
Grade WN15HD
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.5512 14.00MM
Flute Length 1.6930 43.00MM
Cutter Dia 0.5512 14.00MM
Overall Len 4.2126 107.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dia Deep 3.0XD
Included Angle 180° , Flat Bot
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Size 0.5512 14.00MM
Cut Dia Min 0.5512 14.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
