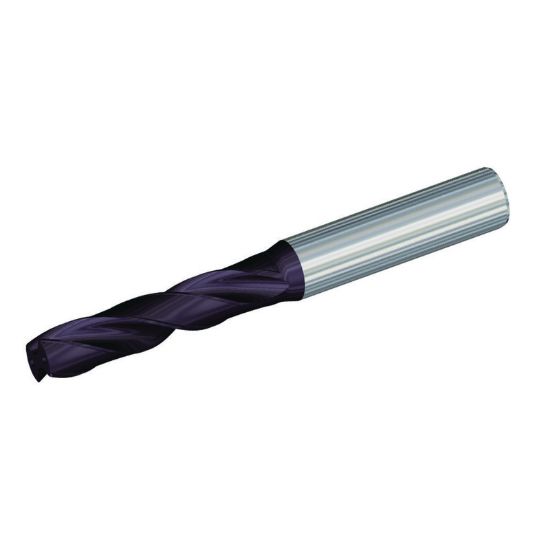

WIDIA/KENNAMETAL TDF521A10000 SC Drill 10MM/.3937/ 3XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6197125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Grade WN15HD
Shipping State Pennsylvania
Application Drilling, Drilling Thru Coolant
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.5039 89.00MM
Flute Length 1.3780 35.00MM
Machine Side Connection Size 0.3937 10.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Included Angle 180° , Flat Bot
Flutes/Inserts 2
Cutter Dia 0.3937 10.00MM
Cut Dia Min 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Dia Deep 3.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
