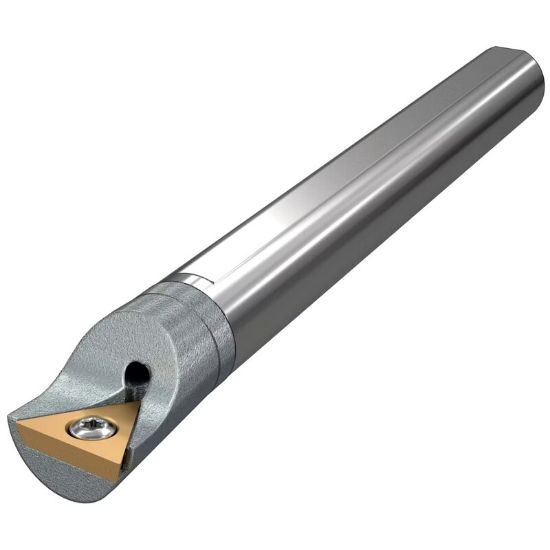

Picture of WIDIA/KENNAMETAL SCBI62565R Carbide Triangle Insert Boring Bar 0.625

WIDIA/KENNAMETAL SCBI62565R Carbide Triangle Insert Boring Bar 0.625

ANSI: SCBI62565R

ISO: SCBI62565R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2822500
Delivery date: 3-5 days
$420.33

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Application Int.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Min Bore 0.7200
Tool Material Carbide
Lead Angle 95°
Overall Len 6.0000 152.40MM
Insert Size Ic 16 "32"
Flutes/Inserts 1
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TP
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 60.0°
Hand R/L Right
