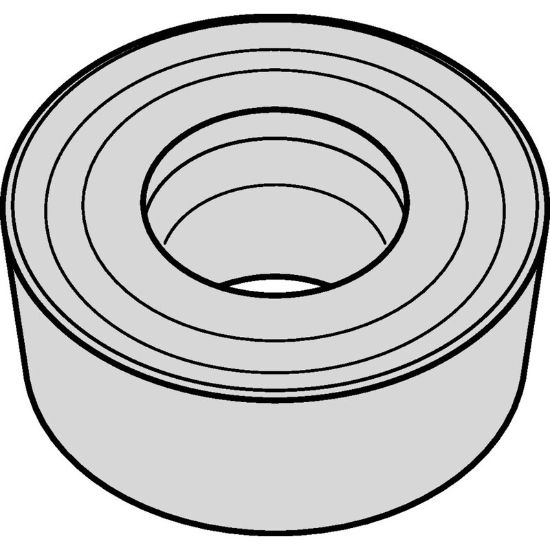

WIDIA/KENNAMETAL RCMT0602M0 TN2000 Insert Round TiN + TiCN + Al2O3 0.125 Corner Radius

ANSI: RCMT0602M0 TN2000

ISO: RCMT0602M0 TN2000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2564447
Delivery date: 3-5 days
$5.85

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD, for steels.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Grade TN2000
Made In USA No
Coating TiN + TiCN + Al2O3
Application Turning Insert
Package Size 10
Shipping State Pennsylvania
Insert/Tool Insert
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Insert Size Ic 6
Corner Radius 0.1250 3.18MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Cutting Edge Mat Carbide
Insert Style RC
