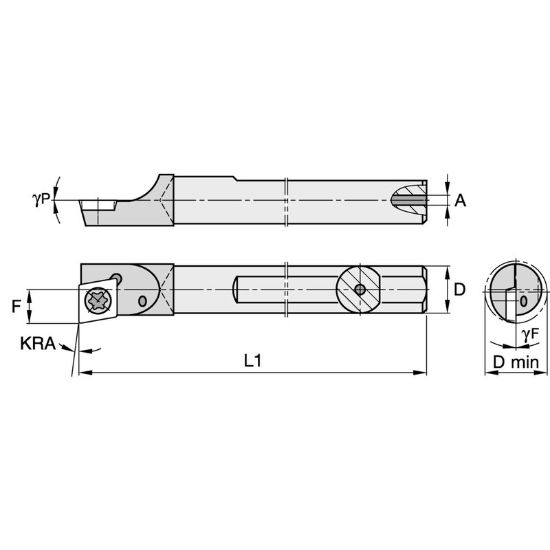

Picture of WIDIA/KENNAMETAL QCMI50085R Carbide Boring Bar 80.0° Boring Bar 0.500 Shank

WIDIA/KENNAMETAL QCMI50085R Carbide Boring Bar 80.0° Boring Bar 0.500 Shank

ANSI: QCMI50085R

ISO: QCMI50085R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2825105
Delivery date: 3-5 days
$421.76

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Details

CARBIDE SHANK GROOVING THREADI

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Flutes/Inserts 1
Tool Material Carbide
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Lead Angle 95°
Overall Len 8.0000 203.20MM
Min Bore 0.5450
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
Insert Style CP
