Picture of WIDIA/KENNAMETAL QCBIW37563L Carbide Trigon Insert Boring Bar 0.375

WIDIA/KENNAMETAL QCBIW37563L Carbide Trigon Insert Boring Bar 0.375

ANSI: QCBIW37563L

ISO: QCBIW37563L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2825327
Delivery date: 3-5 days
$325.59

Features And Benefits

High desity carbided used to dampen vibration. Great for long reach boring.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Int.Turning
Insert Application General Purpose
Made In USA No
Shipping State Pennsylvania

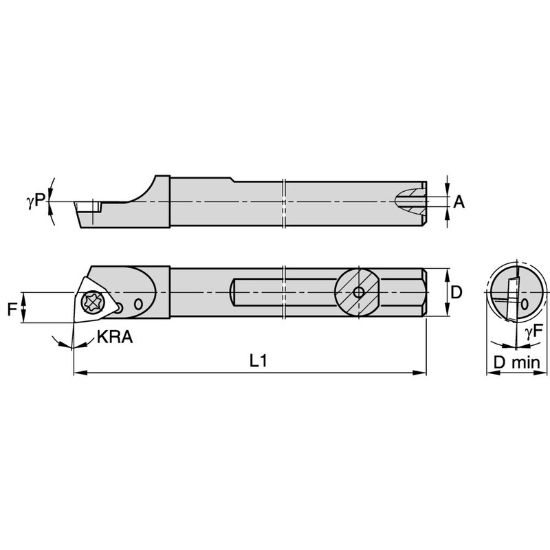

Dimensional Specifications
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 1
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Min Bore 0.4130
Insert Size Ic 21
Lead Angle 93°
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Insert Style WP
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Left
