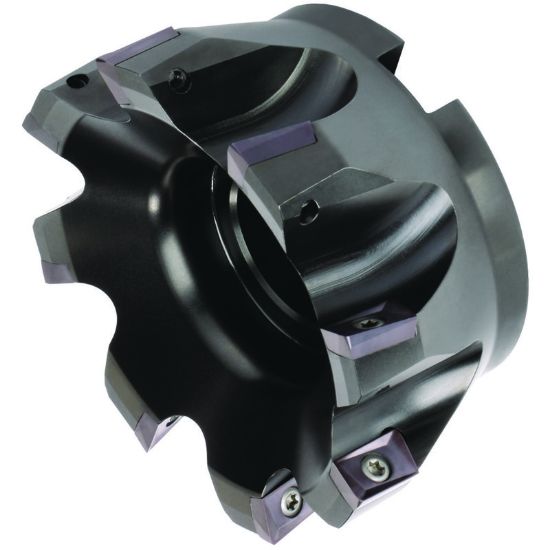

Picture of WIDIA/KENNAMETAL M680D200Z05S075XP16 90.0° Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M680D200Z05S075XP16 90.0° Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: M680D200Z05S075XP16

ISO: M680D200Z05S075XP16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2646760
Delivery date: 3-5 days
$286.48

Features And Benefits

Four cutting edges. 0° shoulders. Excellent for slot and profile milling.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Insert Size Ic 16
Length Of Cut 0.5500 13.97MM
Overall Len 1.5000 38.10MM
Cutting & Machining Properties
Insert Style XP
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
