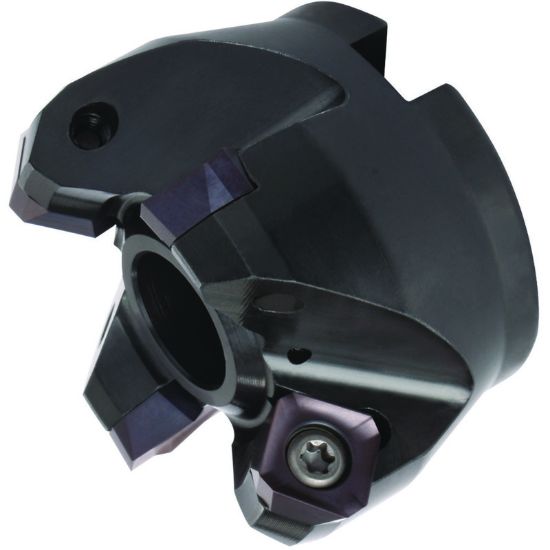

Picture of WIDIA/KENNAMETAL M660D300Z06S100SN12 58.0° Milling Cutter 3.560 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL M660D300Z06S100SN12 58.0° Milling Cutter 3.560 Cutter Diameter Face Mill 1.000

ANSI: M660D300Z06S100SN12

ISO: M660D300Z06S100SN12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2646749
Delivery date: 3-5 days
$709.03

Features And Benefits

Four cutting edges. Strong tool body design. Excellent chip evacuation.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Insert Size Ic 12 "43"
Depth Of Cut Max 0.2500
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 6
Cutter Dia 3.5600 90.42MM
Cutting & Machining Properties
Insert Style SN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Hexagon
Hand R/L Right
