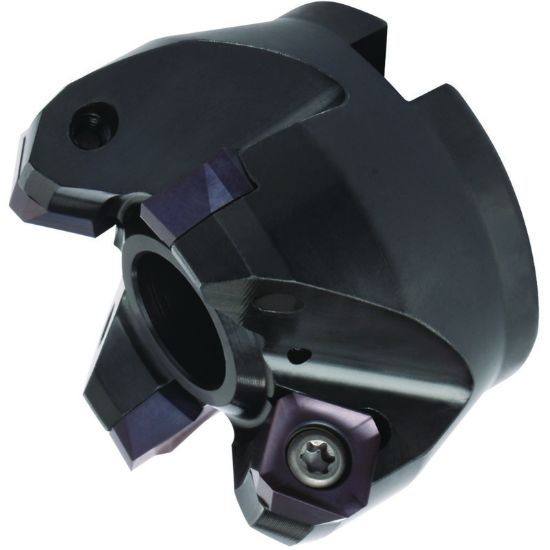

Picture of WIDIA/KENNAMETAL M660 SN1505 CT SM MM 45.0° Milling Cutter 4.602 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL M660 SN1505 CT SM MM 45.0° Milling Cutter 4.602 Cutter Diameter Face Mill 1.259

ANSI: M660 SN1505 CT SM MM

ISO: 12396215000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003593
Delivery date: 3-5 days
$811.03
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Made In USA No
Package Size 1
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Overall Len 1.9690 50.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Cutter Dia 4.6020 116.89MM
Insert Size Ic 15 "54"
Depth Of Cut Max 0.3150
Flutes/Inserts 7
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
Insert Style SN
