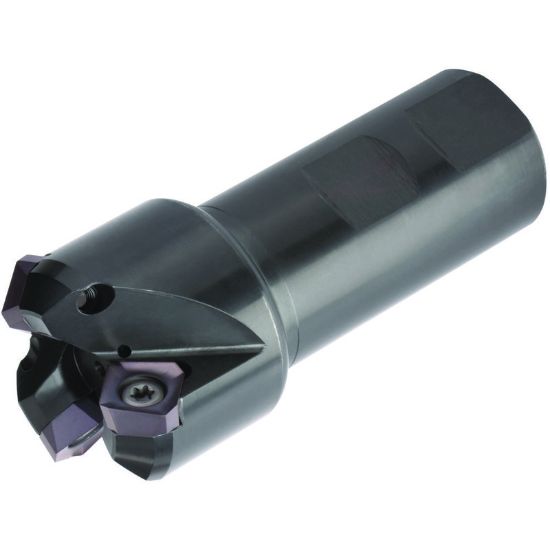

Picture of WIDIA/KENNAMETAL M660 SN1205 CT W MM 45.0° Milling Cutter 1.524 Cutter Diameter Weldon 0.984

WIDIA/KENNAMETAL M660 SN1205 CT W MM 45.0° Milling Cutter 1.524 Cutter Diameter Weldon 0.984

ANSI: M660 SN1205 CT W MM

ISO: 12396202600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2002370
Delivery date: 3-5 days
$398.15

Features And Benefits

Four cutting edges. Strong tool body design. Excellent chip evacuation.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Cutter Dia 1.5240 38.71MM
Neck Dia 0.9760
Machine Side Connection Type Weldon
Overall Len 3.5830 91.01MM
Shank/Pilot Dia 0.9843 25.00MM
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Depth Of Cut Max 0.2500
Flutes/Inserts 2
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru Yes
Insert Style SN
