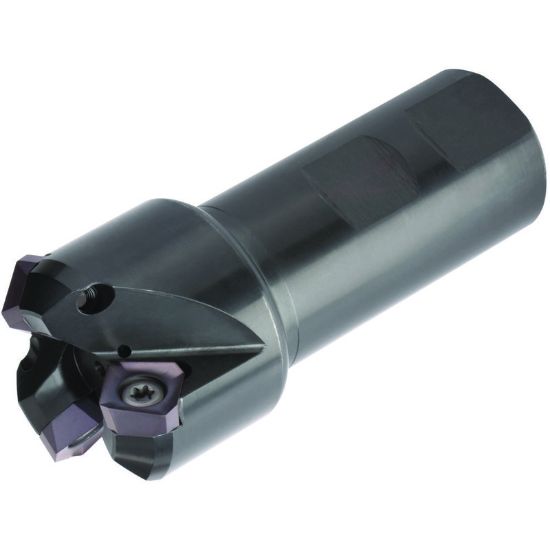

Picture of WIDIA/KENNAMETAL M660 SN1205 CT W MM 45.0° Milling Cutter 1.331 Cutter Diameter Weldon 0.984

WIDIA/KENNAMETAL M660 SN1205 CT W MM 45.0° Milling Cutter 1.331 Cutter Diameter Weldon 0.984

ANSI: M660 SN1205 CT W MM

ISO: 12396202200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2002367
Delivery date: 3-5 days
$372.63

Features And Benefits

Four cutting edges. Strong tool body design. Excellent chip evacuation.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Neck Dia 0.9760
Machine Side Connection Type Weldon
Machine Side Connection Size 0.9843 25.00MM
Depth Of Cut Max 0.2500
Cutter Dia 1.3310 33.81MM
Tool Material Steel
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Cut Dia Min 0.7870 19.99MM
Insert Size Ic 12 "43"
Overall Len 3.3860 86.00MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Coolant Thru Yes
