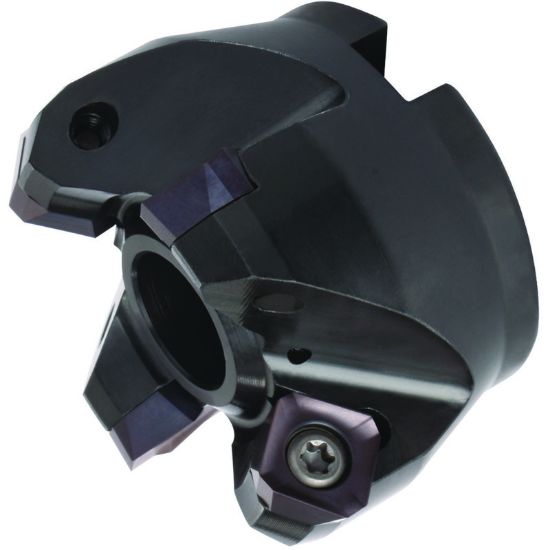

Picture of WIDIA/KENNAMETAL M660 SN1205 CT SM MM 45.0° Milling Cutter 3.713 Cutter Diameter Face Mill 1.063

WIDIA/KENNAMETAL M660 SN1205 CT SM MM 45.0° Milling Cutter 3.713 Cutter Diameter Face Mill 1.063

ANSI: M660 SN1205 CT SM MM

ISO: 12396204600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003575
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Four cutting edges. Strong tool body design. Excellent chip evacuation.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Application Face Milling
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2520
Tool Material Steel
Overall Len 1.9690 50.01MM
Insert Size Ic 12 "43"
Cut Dia Min 3.1500 80.01MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.0630 27.00MM
Flutes/Inserts 6
Cutter Dia 3.7130 94.31MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
