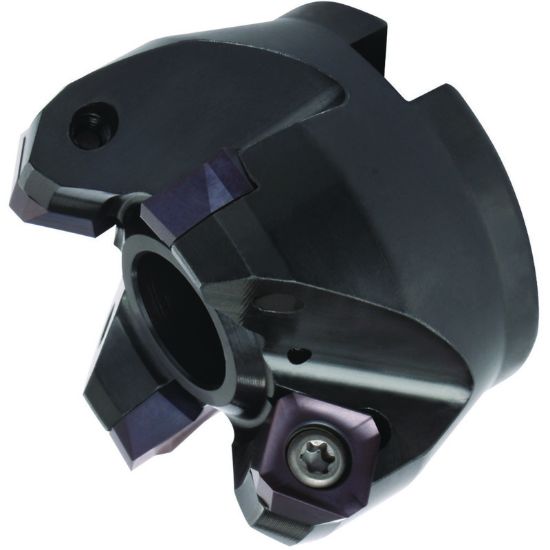

Picture of WIDIA/KENNAMETAL M660 SN1205 CT SM MM 45.0° Milling Cutter 3.012 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M660 SN1205 CT SM MM 45.0° Milling Cutter 3.012 Cutter Diameter Face Mill 0.866

ANSI: M660 SN1205 CT SM MM

ISO: 12396204200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003558
Delivery date: 3-5 days
$585.37

Features And Benefits

Four cutting edges. Strong tool body design. Excellent chip evacuation.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert Type Positive
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 12 "43"
Cutter Dia 3.0120 76.50MM
Depth Of Cut Max 0.2520
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 5
Cut Dia Min 2.4800 62.99MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
