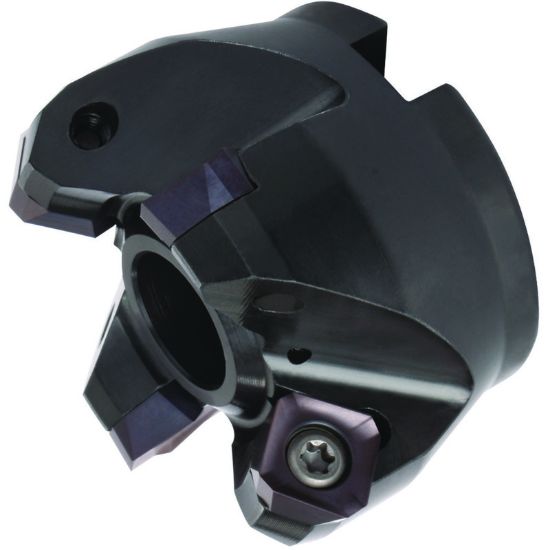

Picture of WIDIA/KENNAMETAL M660 SN1205 CT SM MM 45.0° Milling Cutter 2.500 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M660 SN1205 CT SM MM 45.0° Milling Cutter 2.500 Cutter Diameter Face Mill 0.866

ANSI: M660 SN1205 CT SM MM

ISO: 12396203800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2003541
Delivery date: 3-5 days
$513.05

Features And Benefits

Four cutting edges. Strong tool body design. Excellent chip evacuation.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Semi Finishing, Roughing
Package Size 1
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Min 1.9690 50.01MM
Flutes/Inserts 4
Insert Size Ic 12 "43"
Depth Of Cut Max 0.2520
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Overall Len 1.5750 40.01MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
