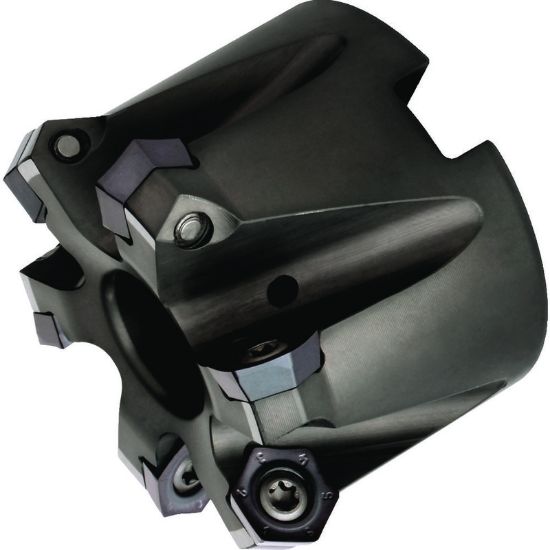

Picture of WIDIA/KENNAMETAL M640D200Z05S075HP06 32.0° Milling Cutter 2.251 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL M640D200Z05S075HP06 32.0° Milling Cutter 2.251 Cutter Diameter Face Mill 0.750

ANSI: M640D200Z05S075HP06

ISO: M640D200Z05S075HP06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2961910
Delivery date: 3-5 days
$376.49

Features And Benefits

Six cutting edges. Highly positive rake for low-power machines or light fixtures. Geometries and grades for all applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling
Made In USA No
Insert Application Semi Finishing, Roughing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 06T3
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Depth Of Cut Max 0.1920
Cut Dia Min 2.0000 50.80MM
Overall Len 1.5000 38.10MM
Cutter Dia 2.2511 57.18MM
Cutting & Machining Properties
Insert Style HP
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
