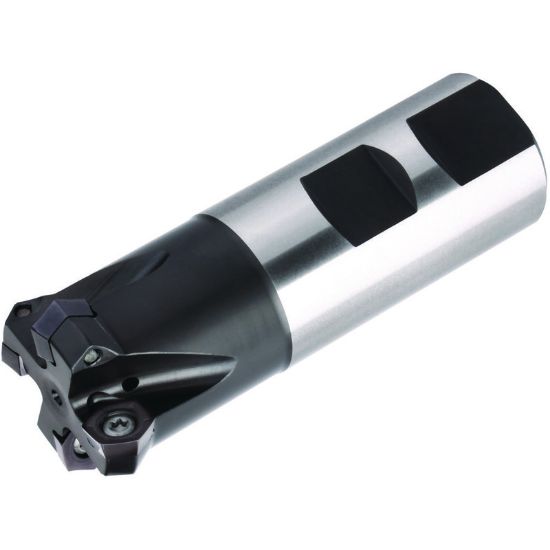

Picture of WIDIA/KENNAMETAL M640 HP06T3 CT W MM 55.0° Milling Cutter 1.432 Cutter Diameter Cylindrical 1.259

WIDIA/KENNAMETAL M640 HP06T3 CT W MM 55.0° Milling Cutter 1.432 Cutter Diameter Cylindrical 1.259

ANSI: M640 HP06T3 CT W MM

ISO: 12395405200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2263165
Delivery date: 3-5 days
$628.61

Features And Benefits

Six cutting edges. Highly positive rake for low-power machines or light fixtures. Geometries and grades for all applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA No
Insert Type Positive
Application Face Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Tool Material Steel
Depth Of Cut Max 0.1889
Cutter Dia 1.4320 36.37MM
Insert Size Ic 06T3
Machine Side Connection Size 1.2598 32.00MM
Overall Len 3.9370 100.00MM
Shank/Pilot Dia 1.2598 32.00MM
Neck Dia 0.9764
Flutes/Inserts 4
Cut Dia Min 1.2598 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Hexagon
Insert Style HP
Hand R/L Right
Coolant Thru Yes
