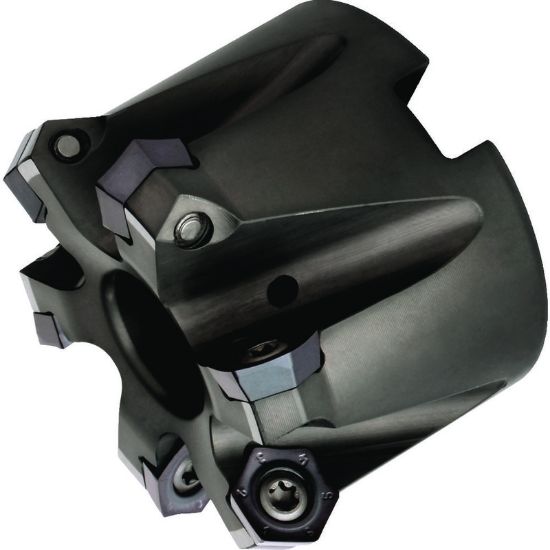

Picture of WIDIA/KENNAMETAL M640 HP06T3 CT SM MM 55.0° Milling Cutter 4.189 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL M640 HP06T3 CT SM MM 55.0° Milling Cutter 4.189 Cutter Diameter Face Mill 1.259

ANSI: M640 HP06T3 CT SM MM

ISO: 12395415800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2263159
Delivery date: 3-5 days
$1,060.79

Features And Benefits

Six cutting edges. Highly positive rake for low-power machines or light fixtures. Geometries and grades for all applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Application Face Milling
Dimensional Specifications
Cutter Dia 4.1890 106.40MM
Overall Len 1.9685 50.00MM
Flutes/Inserts 10
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.1889
Insert Size Ic 06T3
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Style HP
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Hexagon
