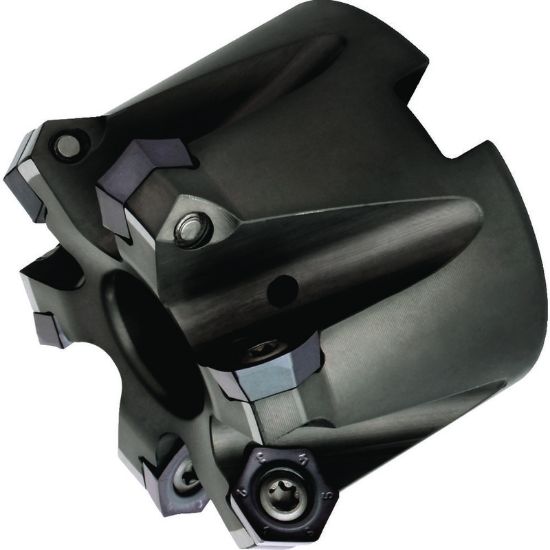

Picture of WIDIA/KENNAMETAL M640 HP06T3 CT SM MM 55.0° Milling Cutter 4.189 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL M640 HP06T3 CT SM MM 55.0° Milling Cutter 4.189 Cutter Diameter Face Mill 1.259

ANSI: M640 HP06T3 CT SM MM

ISO: 12395410800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2263158
Delivery date: 3-5 days
$838.81

Features And Benefits

Six cutting edges. Highly positive rake for low-power machines or light fixtures. Geometries and grades for all applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 4.1890 106.40MM
Overall Len 1.9685 50.00MM
Flutes/Inserts 7
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Depth Of Cut Max 0.1889
Insert Size Ic 06T3
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Style HP
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru No
