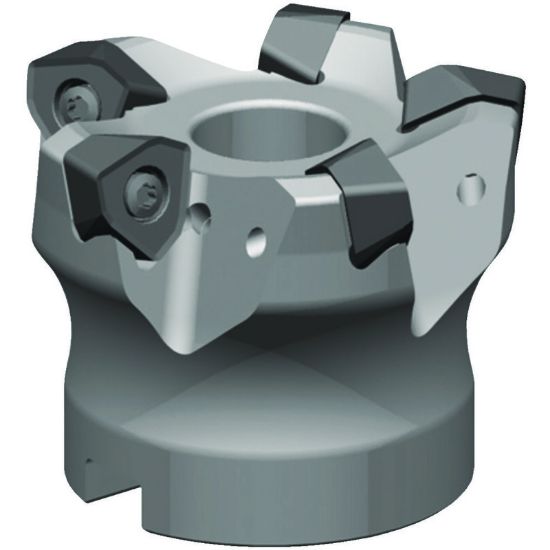

Picture of WIDIA/KENNAMETAL M370D250Z05S100WO12 Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL M370D250Z05S100WO12 Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

ANSI: M370D250Z05S100WO12

ISO: M370D250Z05S100WO12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5352399
Delivery date: 3-5 days
$637.63

Features And Benefits

Double-sided, six cutting edges. Highest metal removal rates. First choice for roughing applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Application Copy Milling, Feed Milling, Face Milling, Slot Milling, Ramp Milling
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.0780
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 12
Cut Dia Min 1.8340 46.58MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Right
Insert Style WO
Coolant Thru Yes
