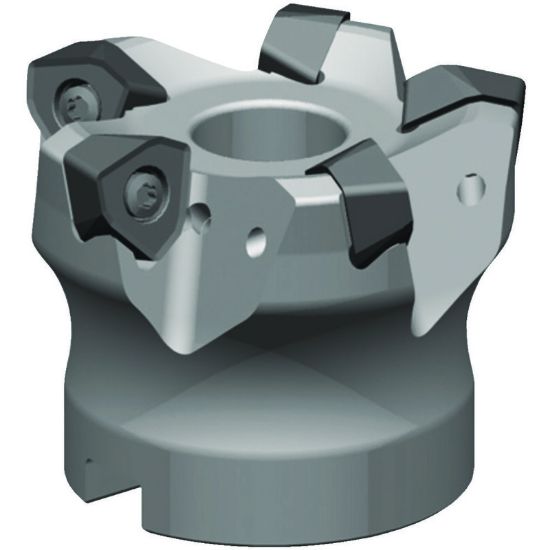

Picture of WIDIA/KENNAMETAL M370D100Z06WO12 Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

WIDIA/KENNAMETAL M370D100Z06WO12 Milling Cutter 3.937 Cutter Diameter Face Mill 1.259

ANSI: M370D100Z06WO12

ISO: M370D100Z06WO12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5338920
Delivery date: 3-5 days
$746.25

Features And Benefits

Double-sided, six cutting edges. Highest metal removal rates. First choice for roughing applications.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ramp Milling, Face Milling, Slot Milling, Feed Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.0780
Cut Dia Min 3.2700 83.06MM
Tool Material Steel
Cutter Dia 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2598 32.00MM
Overall Len 1.9690 50.01MM
Insert Size Ic 12
Flutes/Inserts 6
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WO
Coolant Thru Yes
Hand R/L Right
