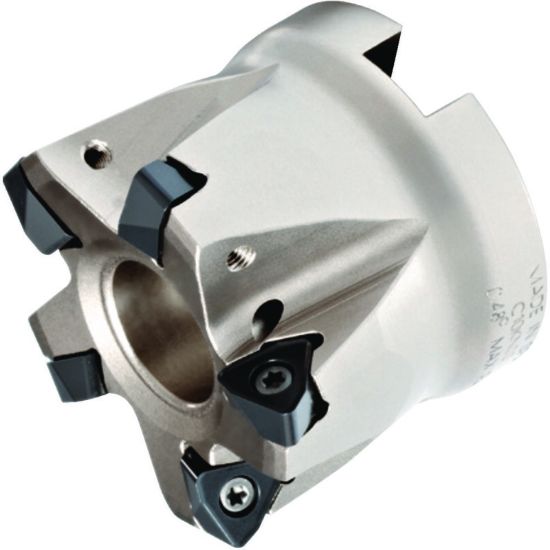

Picture of WIDIA/KENNAMETAL M370D050Z06WO08 Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL M370D050Z06WO08 Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: M370D050Z06WO08

ISO: M370D050Z06WO08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4171223
Delivery date: 3-5 days
$534.79

Features And Benefits

Double-sided, six cutting edges. Highest metal removal rates. First choice for roughing applications.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 804
Cut Dia Min 1.4200 36.07MM
Cutter Dia 1.9690 50.01MM
Depth Of Cut Max 0.0490
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Flutes/Inserts 6
Cutting & Machining Properties
Hand R/L Right
Insert Style WO
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
