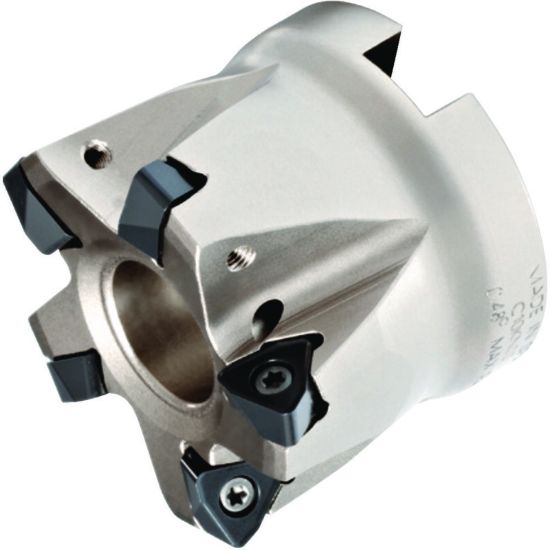

Picture of WIDIA/KENNAMETAL M370D040Z05WO08 Milling Cutter 1.575 Cutter Diameter Face Mill 0.629

WIDIA/KENNAMETAL M370D040Z05WO08 Milling Cutter 1.575 Cutter Diameter Face Mill 0.629

ANSI: M370D040Z05WO08

ISO: M370D040Z05WO08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4170922
Delivery date: 3-5 days
$465.52

Features And Benefits

Double-sided, six cutting edges. Highest metal removal rates. First choice for roughing applications.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert Application General Purpose
Shipping State Pennsylvania
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 804
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Overall Len 1.5750 40.01MM
Depth Of Cut Max 0.0490
Machine Side Connection Size 0.6299 16.00MM
Cut Dia Min 1.0300 26.16MM
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Right
Insert Style WO
Coolant Thru Yes
