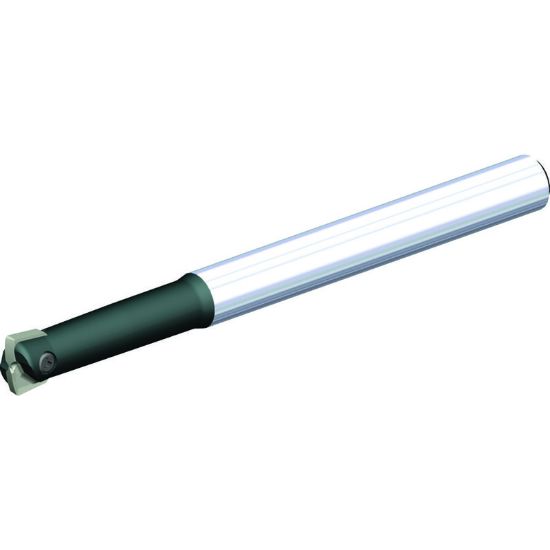

Picture of WIDIA/KENNAMETAL M270TD020A20L180 Milling Cutter Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL M270TD020A20L180 Milling Cutter Cutter Diameter Cylindrical 0.787

ANSI: M270TD020A20L180

ISO: M270TD020A20L180

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3926517
Delivery date: 3-5 days
$316.17

Features And Benefits

High metal removal rates. Excellent in long reach applications. Rough and semi-finishing applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Application Copy Milling, Feed Milling, Profile Milling
Made In USA No
Insert Type Neutral
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Min 0.7874 20.00MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.0440
Flutes/Inserts 1
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 7.0870 180.01MM
Insert Size Ic 20
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Style M2
