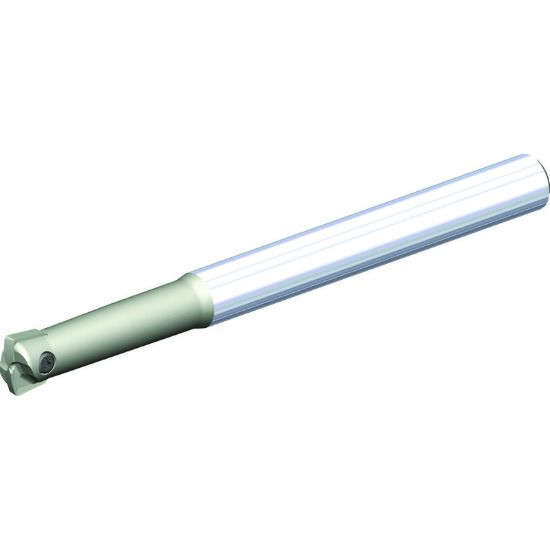

Picture of WIDIA/KENNAMETAL M270TD016A16L140C Milling Cutter 0.669 Cutter Diameter Cylindrical 0.629

WIDIA/KENNAMETAL M270TD016A16L140C Milling Cutter 0.669 Cutter Diameter Cylindrical 0.629

ANSI: M270TD016A16L140C

ISO: M270TD016A16L140C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3926522
Delivery date: 3-5 days
$799.85

Features And Benefits

High metal removal rates. Excellent in long reach applications. Carbide shank for higher rigidity.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling, Feed Milling
Package Size 1
Insert Type Neutral
Made In USA No
Shipping State Pennsylvania
Insert/Tool Tool
Dimensional Specifications
Overall Len 5.5120 140.00MM
Cutter Dia 0.6690 16.99MM
Depth Of Cut Max 0.0360
Cut Dia Min 0.6299 16.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 1
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Hand R/L Right
Insert Style M2
Coolant Thru Yes
