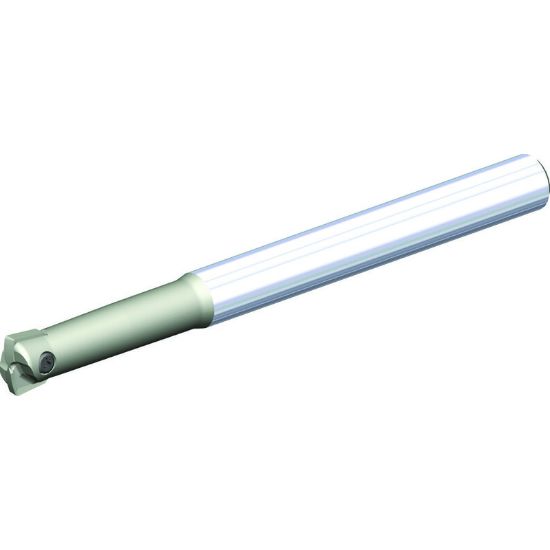

Picture of WIDIA/KENNAMETAL M270TD012A12L160C Milling Cutter 0.512 Cutter Diameter Cylindrical 0.472

WIDIA/KENNAMETAL M270TD012A12L160C Milling Cutter 0.512 Cutter Diameter Cylindrical 0.472

ANSI: M270TD012A12L160C

ISO: M270TD012A12L160C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3926521
Delivery date: 3-5 days
$681.80

Features And Benefits

High metal removal rates. Excellent in long reach applications. Carbide shank for higher rigidity.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Application Copy Milling, Feed Milling, Profile Milling
Insert Type Neutral
Made In USA No
Dimensional Specifications
Cut Dia Min 0.4724 12.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 6.2990 159.99MM
Depth Of Cut Max 0.0240
Insert Size Ic 12
Cutter Dia 0.5120 13.00MM
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 1
Cutting & Machining Properties
Insert Style M2
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern External
Coolant Thru Yes
Hand R/L Right
